Laser Engravers
RR Pico
$200,000
Financing available with 0% fees for 6 months*

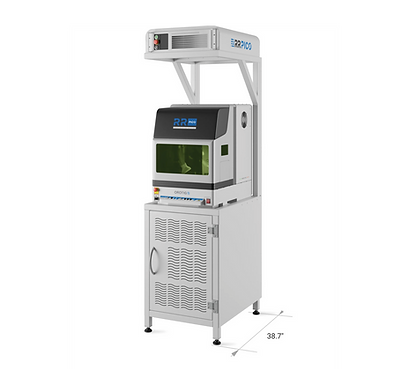

Product Description
The RR Pico uses a very short laser pulse, in the picosecond range, to provide the highest possible quality engravings. Used for: Engraving on extremely small pieces or making precise markings.
Product Specifications
Product Specifications
Type of Laser
Ytterbium Picosecond Fiber Laser
Focal Lenses Available
125 mm
Z Axis Type
Electric with software control
Marking Speed
Up to 10 m/s
Impulse Energy
0.7 mJ
M²
≤ 2
Cooling System
Forced air and liquid cooling system
Power Supply
230 VAC ±10%, 1+N ph, 50/60 Hz, 0.75 kW
Weight
210 kg
Laser Source (Nominal Power)
50 W
Marking Area
57 × 57 mm
Z Axis Travel
150 mm
Frequency
50 kHz - 2750 kHz
Pulse Duration
2 ps
Safety Class
Class 1 (closed), Class 3R (open)
Wavelength
1030 nm
Spot Diameter
50 μm
Product Dimensions
Additional Details
Highest Possible Quality and Definition
Mark on Finished and Rhodium-Plated Jewelry
Burr-Free and Burn-Free Engravings
No Material Waste and No Post-Processing
Autofocus Camera
Rotary and Spindle
See these features in real time:
Engraves precious metals without having to sand them to remove burrs
Capable of engraving metals, silicon, plastics and ceramics
Engraves rhodium-plated jewelry with ease
Engraves metal with no structure modifications and no burning
What Comes With RR Pico
Desktop PC
Vise
Ring holder
Vacuum RR-W TBH BF 100 R
We do not normally stock this item.
This item is Heavy and will result in higher shipping costs.
Out of Stock and Special Order items will ship when available.
