Laser Welder

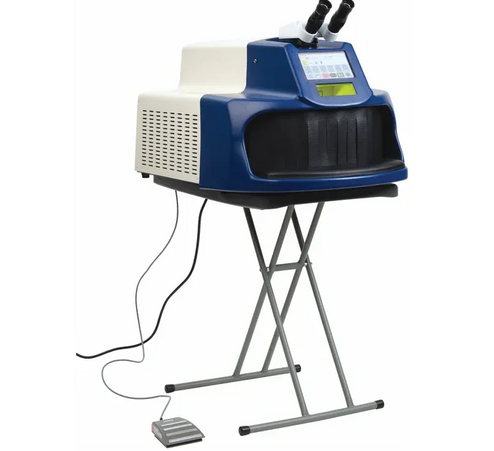

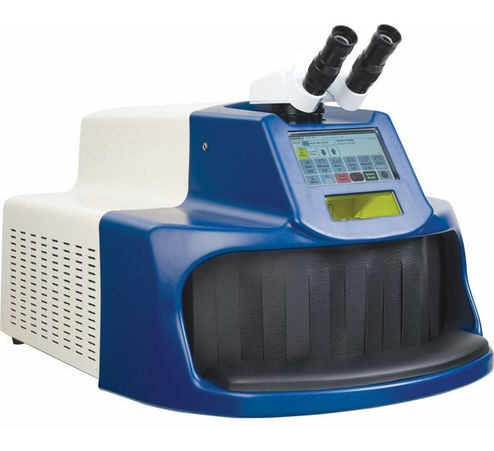

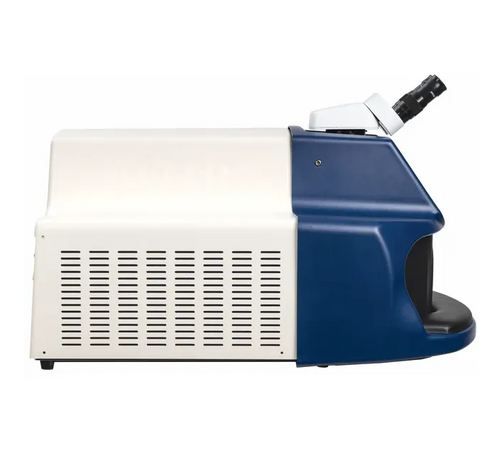

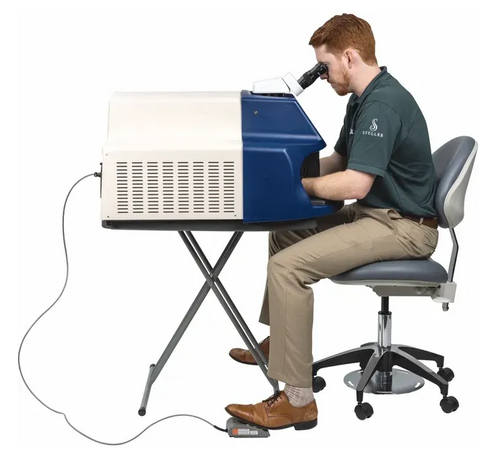

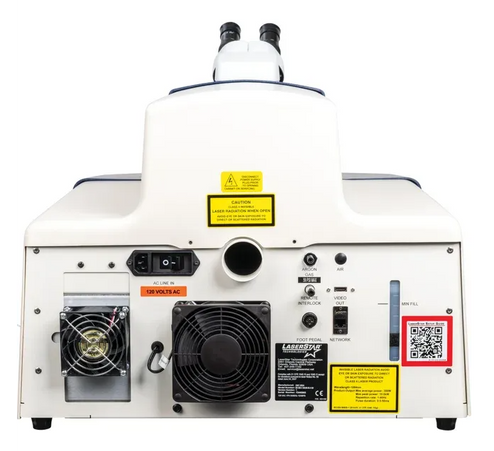

LaserStar 993 iWeld
$17,500
Financing available with 0% fees for 6 months*
Product Description
Easy to use, simple to maintain, and incredibly powerful, the 993 Series iWeld Benchtop Jewelry Laser Welder fits neatly into any work environment. The iWeld is ideal for a wide range of metal joining and repair applications for today's retail manufacturing jewelers.
Product Specifications
Product Specifications
Weight
151 lbs (68,492.45 grams)
Daily Usage Recommendation
24 Hours
Chamber Dimensions (LxWxH)
10 x 20 x 9 in
Observation Window
5 x 2 in
Volts
120
Amp
15
Beam Diameter
.20 - 2 mm
Peak Pulse Power
11 kW
Light Type
LED
Presets Capability
99
Brand Name
LaserStar
Dimensions (LxWxH)
33 x 21 x 16 in
Screen Size
7 in
Power
Single Phase
Hz
50/60
Pulse Frequency
.50 - 50 Hz / Single Pulse
Pulse Power
.10 - 180 Joules
Pulse Duration
.10 - 30 microseconds

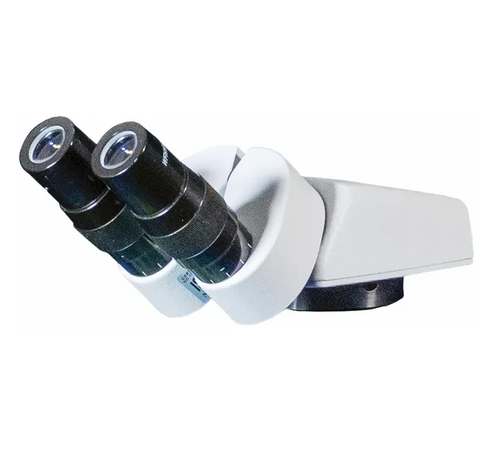

Magnification Power
15x
Product Dimensions
Additional Details

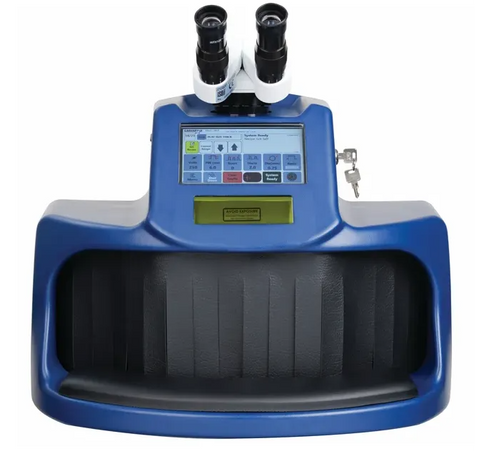

9" Digital Display
Integrated HDMI 4k 8MP Camera w/ HDMI Output
Wide Access Ergo Chamber
Burst / Speed Welding, Pulse Shaping
Soft-Touch® Resonator Technology
Pre-Programmed Application Settings
Auto Energy Save Mode
Preventative Maintenance Alerts
Worldwide Safety Certification: FDA (CDRH), UL, CSA, CE
Note:
We do not normally stock this item.
This item is Heavy and will result in higher shipping costs.
Out of Stock and Special Order items will ship when available.
Ways to use LaserStar 993
Ring Sizing
Porosity & Pitting
Chains
Rebuilding Channels
Re-tipping Prongs
Rebuilding Prongs
Stone Setting
Small Parts
Titanium Welding
