Evo X Tech

Laser Welder

$26,000

Financing available with 0% fees for 6 months*

Product Description

The Evo X Tech is an upgraded version of the Evo X, offering enhanced performance, advanced software, and increased output of up to 250 joules with peak power reaching 10 kW. SoftSpot technology provides consistent, controlled laser delivery for clean, uniform welds across a wide range of metals, including highly reflective materials such as rose gold, silver, and platinum. An improved cooling system supports sustained operation, while the patented Smart Footswitch allows real-time adjustment of welding parameters through pressure control without interrupting workflow. The integrated IUVAPS system maintains a continuously sanitized working environment by reducing dust and airborne contaminants, supporting safer daily operation.

Product Specifications

Download 'Owner's Manual'

Download 'Brochure'

Product Specifications

Power Supply

Single phase, 230 ±10% VAC, 50/60 Hz

Crystal Type

Nd: YAG @ 1064

Peak Power

10 kW

Frequency of Repetition

0 - 40 Hz

Microscope

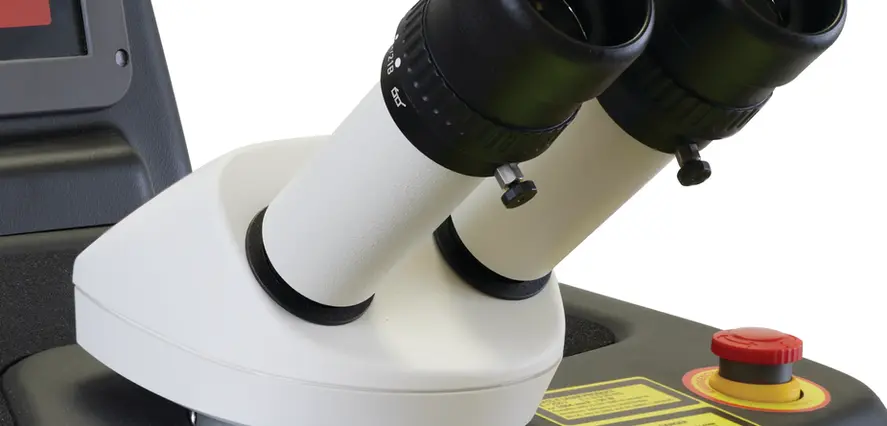

Leica® 45° with 10X and cross hair or optional Lynx microscope

Cooling System

Forced air with fan speed control, 4 liter liquid and radiator

Weight

90 lb.

Maximum Consumption

1.8 kW

Power Impulse and Time

250 J at 25 ms

Mean Power

90 kW

Spot Dimension

From 0.1 to 2.0 mm

External Control

Display TFT 7" capacitive touch screen

Dimensions (W x D x H)

20" x 31.25" x 25"

Warranty

1-year / 2,000,000-shot standard warranty

Product Dimensions

Additional Details

Electrical: Single Phase, 115 – 230 VAC±10%
Cooling Type: Integrated 4 L water/forced air
Crystal Type: Nd:YAG @ 1064
Pulse Shaping: 5

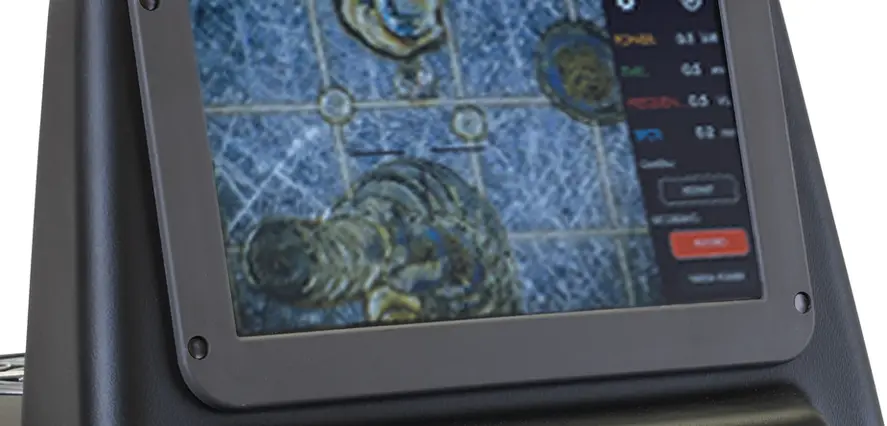

7” LCD display with highly responsive color touchscreen interface
Ability to save pictures & videos via USB or in local memory
Live video display via on-board monitor or external monitor via HDMI
Dynamic selection of settings based on actual job and metal type
Ability to save personally set working parameters
Record and export videos and pictures via USB
Mechanic and electrical safety shutters to guarantee maximum protection
LED lighting system with dimmer
Ergonomic forearms support
Parameters can be set via dial inside the welding chamber
Flexible nozzle for argon gas
Separate connections to argon or compressed air

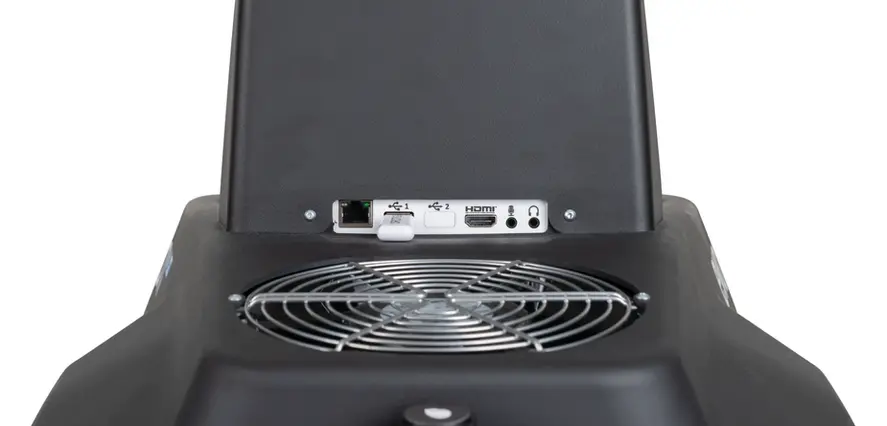

Cooling fan located on the top for optimal placement and ventilation
Dynamic foot pedal to optimally control your parameters and power without adjusting your hands
SoftSpot technology to get the best welding results with ease
