Laser Welder
EVO White
Requires Quote
Financing available with 0% fees for 6 months*
Product Description
The Evo White is a compact, high-performance laser welder, ideal for complex repairs and customizations on metals like silver and platinum. With fire-resistant materials and a dual safety system, it ensures a secure work environment in spaces with limited room. Energy Tune feature that automatically fine tunes the power and pulse duration settings based on the selected material and spot diameter.
Product Specifications
Product Specifications
Power Supply
Single phase, 115-230 ±10% VAC, 50/60 Hz
Power Impulse and Time
160 J at 25 ms
Mean Power
75 kW
Spot Dimension
From 0.3 to 1.5 mm
External Control
Display TFT 3.5" touch screen, with inside chamber joystick
Weight
70 lb.
Crystal Type
Nd: YAG 7 mm bar
Peak Power
7 kW
Frequency of Repetition
Up to 15 shots per second
Microscope
Leica® 45° with 10X and cross hair or optional Lynx microscope
Cooling System
Forced air with fan speed control, 1 liter liquid and radiator
Warranty
1-year / 2,000,000-shot standard warranty

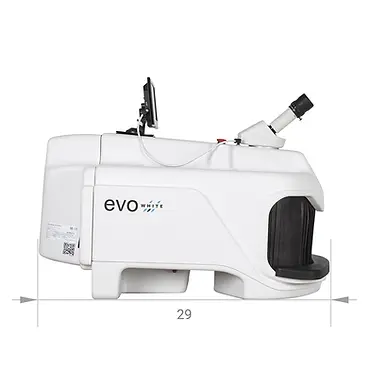

Product Dimensions
Additional Details
Cooling Type: Integrated 4 L water/forced air
Pulse Shaping: 5
LCD display with highly responsive color touchscreen interface
Ability to save pictures & videos via USB or in local memory
Record and export videos and pictures via USB
Live video display via on-board monitor or external monitor via HDMI
Dynamic selection of settings based on actual job and metal type
Ability to save personally set working parameters
Mechanic and electrical safety shutters to guarantee maximum protection
LED lighting system with dimmer
Ergonomic forearms support
Parameters can be set via dial inside the welding chamber
Flexible nozzle for argon gas
Separate connections to argon or compressed air
Cooling fan located on the top for optimal placement and ventilation
What Comes With Evo White
Laser welder
Funnel
Tubing
Foot pedal
Optics
Test plates
Test wire
1 gallon of distilled water
